Some time ago I decided to setup seperate homelab network in my house, as my previous homelab server is more like a production homeserver which I don’t want to disrupt. It is not much, but I wanted to build something small, energy-efficient and from the parts I already had.

But back to the topic that made me curious - I kinda needed some persistent storage for pods in lab. Then I remembered that the Mikrotik (RB951G-2HnD) router i’m using have a USB port and I saw an option in winbox to create SMB share. I think you can image where it is going.

Setup Kubernetes cluster⌗

For Kubernetes I will be using single-node Talos Linux. Didn’t even used Terraform or anything fancy to deploy it, just created a virtual machine on Proxmox with nocloud image.
What is a Talos Linux? Talos Linux is a minimal, immutable linux distribution that is designed for Kubernetes - it doesn’t even have a SSH, and you do all the configuration over API.

As this writeup is not a tutorial, I will skip setup of Talos Linux, but if i got you interested, take a look on Talos Linux Getting Started guide

Setup Samba share on Mikrotik⌗

The cover picture was kinda a clickbait - for storage I will be using a slow microSD card, as at the time of writing, i didn’t had any USB-powered storage that was stable on my mikrotik (i guess 2,5" SSDs or HDDs might be a bit too power hungry, or my adapters were not compatible with ROS)

I’m not a RouterOS expert, additionally the forum.mikrotik.com at the time of writing was down

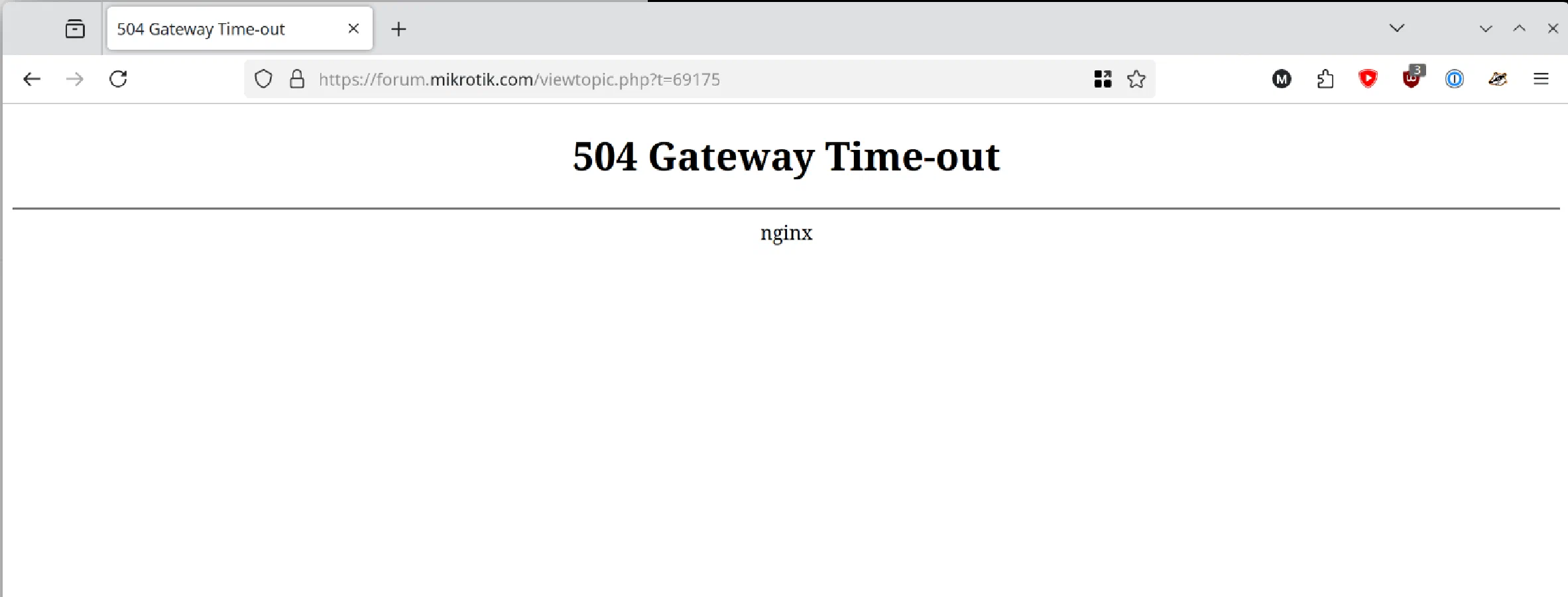

nginx error page showing 504 gateway timeout on mikrotik forum

but this minor inconvenience will not prevent me from trying anyway.

First, let’s see if our USB drive is detected

[admin@MikroTik] > disk print
Flags: B - BLOCK-DEVICE; M, F - FORMATTING; p - PARTITION
Columns: SLOT, MODEL, SERIAL, INTERFACE, SIZE, FREE, FS
#     SLOT        MODEL                     SERIAL                    INTERFACE                  SIZE           FREE  FS
0 B   usb1        MXTronics MXT USB Device  130818v01                 USB 2.00 480Mbps  7 744 782 336
1 BMp usb1-part1                            @1'048'576-7'744'782'336                    7 743 733 760  7 518 978 048  ext4

Cool, there is my USB. I pre-formatted this card on my PC to ext4.

[admin@MikroTik] /ip/smb/shares> add name=kube directory=/usb1-part1
[admin@MikroTik] /ip/smb/shares> print
Flags: * - DEFAULT
Columns: NAME, DIRECTORY, MAX-SESSIONS
#   NAME  DIRECTORY   MAX-SESSIONS
;;; default share
0 * pub   /pub                  10
1   kube  /usb-part1            10
[admin@MikroTik] > /ip/smb/shares/enable numbers=1

Next i enabled the SMB and added user

[admin@MikroTik] > /ip/smb/set enabled=yes
[admin@MikroTik] > /ip/smb/set interfaces=bridge
[admin@MikroTik] > /ip/smb/users/add name="cluster" password="pleasedontlook" read-only=no

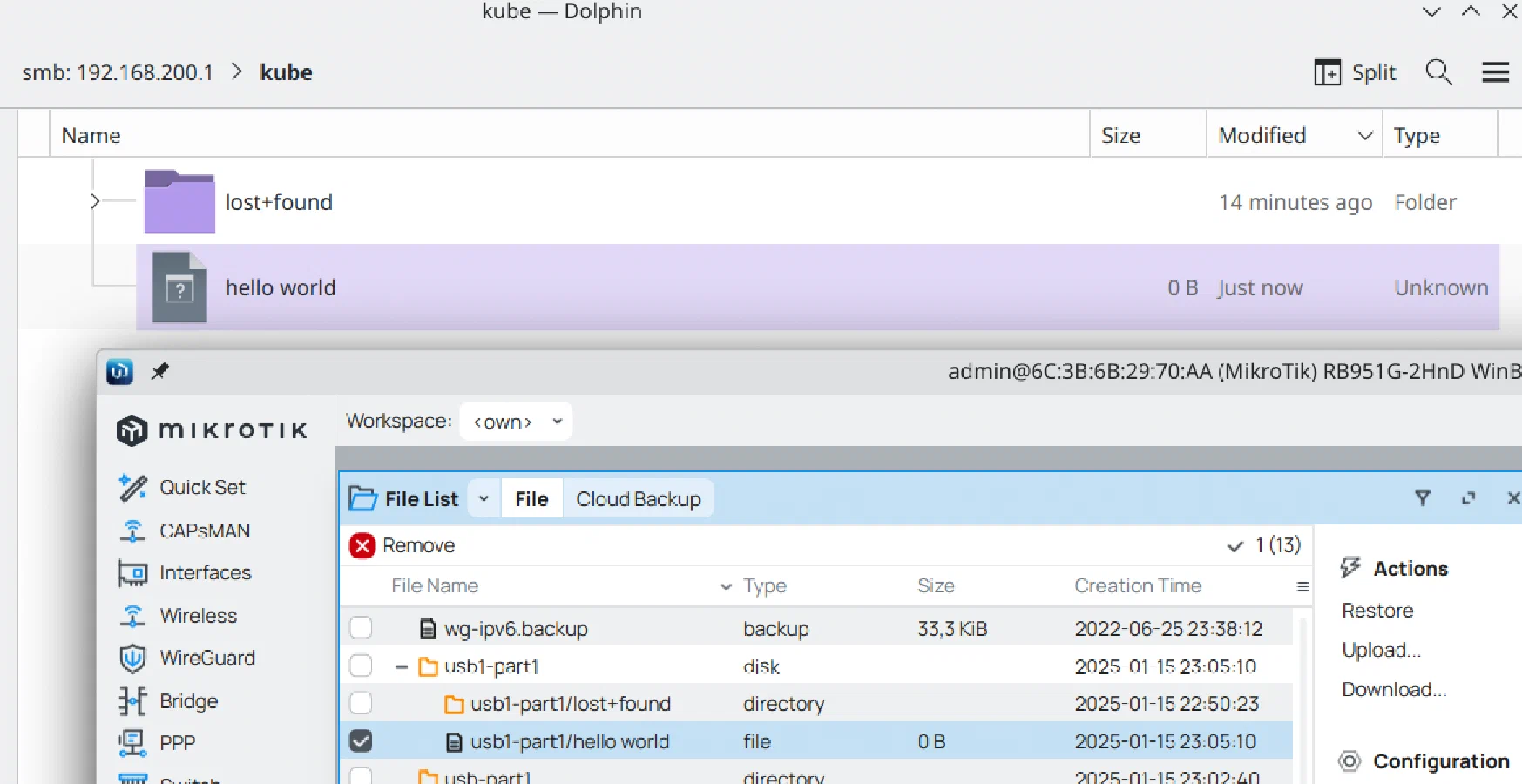

And i tried to connect to share from my desktop Success!

Setup SMB CSI on Kubernetes⌗

As of CSI driver setup, I just installed the driver using kubectl, following official documentation

Created the StorageClass, statefulset and persistent volume for testing aaand…

csi-provisioner     Mounting command: mount
csi-provisioner     Mounting arguments: -t cifs -o dir_mode=0777,file_mode=0777,uid=1001,gid=1001,<masked> //192.168.200.1/kube /tmp/pvc-873655b4-c46b-4ef8-95db-7fa00a603be6
csi-provisioner     Output: mount error(95): Operation not supported
csi-provisioner     Refer to the mount.cifs(8) manual page (e.g. man mount.cifs) and kernel log messages (dmesg)
csi-provisioner  >

oh. In Talos console i can see, more specific error

kern:    info: [2025-01-15T22:18:38.016242704Z]: CIFS: Attempting to mount \\192.168.200.1\kube
 kern:     err: [2025-01-15T22:18:38.026805704Z]: CIFS: VFS: \\192.168.200.1 Dialect not supported by server. Consider  specifying vers=1.0 or vers=2.0 on mount for accessing
 older servers

So in smb StorageClass I added

mountOptions:
- vers=2.0
[...]

and look!

❯ kubectl get pvc
NAME             STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   VOLUMEATTRIBUTESCLASS   AGE
storage-test-0   Bound    pvc-873655b4-c46b-4ef8-95db-7fa00a603be6   2Gi        RWO            smb            <unset>                 18m
❯ kubectl get pv
NAME                                       CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS   CLAIM                    STORAGECLASS   VOLUMEATTRIBUTESCLASS   REASON   AGE
pvc-873655b4-c46b-4ef8-95db-7fa00a603be6   2Gi        RWO            Delete           Bound    default/storage-test-0   smb            <unset>                          2m41s

we got our PV on smb share provisioned!

Now let’s enter the pod and do some basic tests. As i never used SMB CSI driver before, i was surprised that in mount i can see the whole path to smb server, but that makes sense.

/ # mount
[...]
//192.168.200.1/kube/pvc-873655b4-c46b-4ef8-95db-7fa00a603be6 on /mnt type cifs (rw,relatime,vers=2.0,cache=strict,username=cluster,uid=1001,noforceuid,gid=1001,noforcegid,addr=192.168.200.1,file_mode=0777,dir_mode=0777,soft,nounix,serverino,mapposix,rsize=65536,wsize=65536,bsize=1048576,echo_interval=60,actimeo=1,closetimeo=1)

Testing out our monstrosity⌗

Let’s at first point out all the bottlenecks

  • Using MicroSD card (class 4) in USB adapter
  • Using not that powerful routerboard
  • Using CIFS (+on linux)

Random Read⌗

As the first test, i used fio to perform random read

/mnt # fio --name=randread --ioengine=libaio --iodepth=16 --rw=randread --bs=4k --direct=0 --size=100M --numjobs=4 --runtime=240 --group_reporting
randread: (g=0): rw=randread, bs=(R) 4096B-4096B, (W) 4096B-4096B, (T) 4096B-4096B, ioengine=libaio, iodepth=16
...
fio-3.38
Starting 4 processes
randread: Laying out IO file (1 file / 100MiB)
randread: Laying out IO file (1 file / 100MiB)
randread: Laying out IO file (1 file / 100MiB)
randread: Laying out IO file (1 file / 100MiB)
Jobs: 4 (f=4): [r(4)][100.0%][r=1893KiB/s][r=473 IOPS][eta 00m:00s]
randread: (groupid=0, jobs=4): err= 0: pid=26: Wed Jan 15 22:38:23 2025
  read: IOPS=382, BW=1531KiB/s (1567kB/s)(359MiB/240006msec)
    slat (usec): min=1159, max=600406, avg=8302.61, stdev=5622.61
    clat (usec): min=8, max=905809, avg=124681.33, stdev=28987.76
     lat (msec): min=6, max=912, avg=132.98, stdev=30.01
    clat percentiles (msec):
     |  1.00th=[  106],  5.00th=[  110], 10.00th=[  112], 20.00th=[  115],
     | 30.00th=[  117], 40.00th=[  120], 50.00th=[  122], 60.00th=[  125],
     | 70.00th=[  128], 80.00th=[  132], 90.00th=[  138], 95.00th=[  144],
     | 99.00th=[  159], 99.50th=[  186], 99.90th=[  684], 99.95th=[  869],
     | 99.99th=[  894]
   bw (  KiB/s): min=   56, max= 2408, per=100.00%, avg=1926.10, stdev=42.95, samples=1526
   iops        : min=   14, max=  602, avg=481.48, stdev=10.73, samples=1526
  lat (usec)   : 10=0.01%, 20=0.01%, 50=0.01%
  lat (msec)   : 10=0.01%, 20=0.01%, 50=0.02%, 100=0.10%, 250=99.59%
  lat (msec)   : 500=0.15%, 750=0.03%, 1000=0.09%
  cpu          : usr=0.13%, sys=0.65%, ctx=103998, majf=0, minf=102
  IO depths    : 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=99.9%, 32=0.0%, >=64=0.0%
     submit    : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     complete  : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.1%, 32=0.0%, 64=0.0%, >=64=0.0%
     issued rwts: total=91847,0,0,0 short=0,0,0,0 dropped=0,0,0,0
     latency   : target=0, window=0, percentile=100.00%, depth=16

Run status group 0 (all jobs):
   READ: bw=1531KiB/s (1567kB/s), 1531KiB/s-1531KiB/s (1567kB/s-1567kB/s), io=359MiB (376MB), run=240006-240006msec

During the test, i saw around 60% of CPU utilization on router, so actually we might not be yet bottlenecked by router. I’m actually quite suprised by the IOPS number

Random Read/Write⌗

/mnt # fio --randrepeat=1 --ioengine=libaio --gtod_reduce=1 --name=test --filename=random_read_write.fio --bs=4k --iodepth=64 --size=100M --readwrite=randrw --rwmixread=75
test: (g=0): rw=randrw, bs=(R) 4096B-4096B, (W) 4096B-4096B, (T) 4096B-4096B, ioengine=libaio, iodepth=64
fio-3.38
Starting 1 process
Jobs: 1 (f=1): [f(1)][100.0%][eta 00m:00s]
test: (groupid=0, jobs=1): err= 0: pid=35: Wed Jan 15 22:43:11 2025
  read: IOPS=180, BW=722KiB/s (739kB/s)(75.1MiB/106574msec)
   bw (  KiB/s): min=    8, max= 2280, per=100.00%, avg=1046.69, stdev=887.64, samples=147
   iops        : min=    2, max=  570, avg=261.67, stdev=221.92, samples=147
  write: IOPS=59, BW=239KiB/s (245kB/s)(24.9MiB/106574msec); 0 zone resets
   bw (  KiB/s): min=    7, max=  824, per=100.00%, avg=407.48, stdev=284.06, samples=125
   iops        : min=    1, max=  206, avg=101.86, stdev=71.02, samples=125
  cpu          : usr=0.18%, sys=1.80%, ctx=21840, majf=0, minf=7
  IO depths    : 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=0.1%, 32=0.1%, >=64=99.8%
     submit    : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     complete  : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.1%, >=64=0.0%
     issued rwts: total=19233,6367,0,0 short=0,0,0,0 dropped=0,0,0,0
     latency   : target=0, window=0, percentile=100.00%, depth=64

Run status group 0 (all jobs):
   READ: bw=722KiB/s (739kB/s), 722KiB/s-722KiB/s (739kB/s-739kB/s), io=75.1MiB (78.8MB), run=106574-106574msec
  WRITE: bw=239KiB/s (245kB/s), 239KiB/s-239KiB/s (245kB/s-245kB/s), io=24.9MiB (26.1MB), run=106574-106574msec

yeah, not that surprising.

Real-world application test?⌗

I really wanted to make a benchmark using Postgres pgbench, but Postgres will just hang on creating initial data, so i gave up. I think we already know how good it would perform with the current setup.

End words⌗

Actually, the setup process on both RouterOS and Kubernetes part was pretty painless and i didn’t even need to spend multiple hours on troubleshooting. Would I recommended that setup for file storage on PVC? Definitely not, but in a pinch, it might actually be useful as a shared storage for e.g. small configuration files that need R/W access (otherwise just use configmaps).
